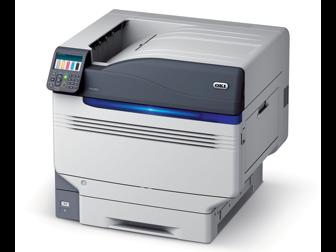

An industry first, the Pro9541 takes digital printing to a new level with the option of printing in CMYK plus the addition of a fifth spot colour in white or clear gloss. Unrivalled media handling, high print speeds, stunning High Definition colours and outstanding print quality make this a unique and affordable option for businesses in the graphic and creative industries looking to access a lucrative new revenue stream.

Exceptional quality - Sharp, crisp documents in CMYK plus a spot colour in white or clear gloss
A first in the graphic arts and creative industries, the affordable five-colour Pro9541 is equipped with a microfine High-Definition toner. Combining digital LED technology and multi-Level ProQ technology, it produces sharp, vibrant colour printing.
- Prints in full range of process CMYK colours plus a spot colour in white or clear gloss
- Superb print resolution of 1200 x 1200dpi
- Stunning vibrancy of colour on dark or transparent media
- Multi-Level ProQ technology enhances colour print output
- Fully-compatible with EFI Fiery®XF for advanced colour management
Media flexibility – Fast printing on an extensive, unrivalled range of graphic arts media
Using high-quality digital LED printing technology, the Pro9541 combines unrivalled media handling, high print speeds and five-colour technology to deliver fantastic results in-house on a wide range of media including gloss paper, film, transfer paper, waterproof paper and more.
- Paper sizes from A6 to SRA3 and banner lengths up to 1.3m
- Prints on paper stock up to 360gsm single-sided and 320gsm duplex
- Wide range of media capability including gloss paper, film, transfer paper, waterproof paper and more
- 530 sheet tray as standard, up to 2,950 sheets with optional trays
- Robust 300 sheet multi-purpose tray for added flexibility
Business boost - Increase margins and grow your business with five-colour printing in CMYK+ white or clear gloss on demand, in house
Giving businesses the chance to offer more for customers, the high-performance Pro9541 creates a competitive edge and unlocks a new revenue stream without the need for a huge investment.
- Print in all colours including solid white or clear gloss quickly and cost effectively
- Create an impact producing concepts for proofing or short print run materials including stationery, brochures, packaging prototypes and point of sale and window graphics
- Interchangeable spot colour kit enables you to switch between white and gloss spot colours in a matter of seconds without cross-contamination of toners
Lower TCO - High-capacity consumables, competitive price, energy efficient
Competitively priced and with ultra-high capacity toner cartridges, the affordable Pro9541 delivers a low total cost of ownership (TCO) while maintaining high coverage and outstanding quality.
- Competitive initial capital cost
- Reduced operating costs through ultra-high capacity toner cartridges (38K) and drums
- Separate toners and drums for reduced wastage
- Eco features for reduced energy usage
Specifications
Printing Method
|
Digital 5 LED Full-color Electrophotographic Printing Method
|
Printing Resolution
|
1200 x 1200 dpi (2 levels)
|
1200 x 600 dpi (16 levels)
|
|
600 x 600 dpi (2 levels)
|
|
Physical dot pitch: 1200 dpi
|
|
Warm-up Time
|
Approx. 50.0 seconds from power-on
|
Approx. 35.0 seconds from power save
|
|
First Print Out Time
|
Color: Approx. 8.0 seconds
|
Mono: Approx. 8.0 seconds
|
|
Print Speed
|
A4(Landscape) 50 ppm color, 50 ppm mono
|
A3 28 ppm color, 28 ppm mono
|
|
Interface
|
1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed)
|
Protocol
|
TCP/IP, EtherTalk
|
Printer Language
|
Adobe PostScript 3, PCL 5c emulation, PCL 6 (XL) emulation, XPS emulation, PDF v1.7 emulation, IBM ProPrinter emulation, Epson FX Emulation
|
Supported OS (Click here for latest OS)
|
Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, OS X 10.10, OS X 10.9, OS X 10.8, OS X 10.7, Mac OS X 10.6, Mac OS X 10.5, Linux
|
Memory (Std./Max.)
|
2GB/2GB
|
Hard Disk Drive
|
(Optional) 160 GB
|
Font
|
Adobe PostScript 136 fonts, PCL emulation 87 scalable fonts, 4 bitmap fonts
|
Paper Size
|
SRA3, SRA4, A3+, A3, A4, A5, A6, B5, B4, Tabloid extra (12" x 18"), Tabloid (11" x 17"), Legal 13, Legal 13.5, Legal 14, Letter, Executive, Index Card (3" x 5") (75 x 125mm), Statement, Envelopes, Postcard, Return postcard, Banner, B6 Half, B4, 8K, 16K, Custom Size: Width 64-330 mm x Length 89-1321 mm
|
Paper Weight
|
Tray 1 : 52 - 320 gsm
|
(Optional)Additional Tray : 52 - 320 gsm
|
|
Multi-purpose tray : 52 - 360 gsm
|
|
Input Capacity
|
Tray 1 : 530 sheets
|
(Optional)Additional Tray : 530 sheets
|
|
Multi-purpose tray : 300 sheets
|
|
Output Capacity
|
Face Down : Max. 610 sheets
|
Face Up : Max. 300 sheets
|
|
Dimensions(WxDxH)
|
699 x 625 x 640 mm
|
Weight(includes supplies)
|
110.8 kg
|
Operating Environment
|
Operating: 10 - 32 °C, 20 - 80 %RH
|
Storage: 0 - 43 °C, 10 - 90 %RH
|
|
No condensation
|
|
Power Source
|
Single phase 230 VAC ±10%, 50/60 Hz ±2%
|
Power Consumption
|
Operating: Max. 1,600W / Ave. 1,100W
Idle: 40W
Power Save: 30.0W
Deep Sleep: 4.0W
Auto-Off: 0.4W
|
Safety& Environment Regulation
|
EMC-Directive, CE Mark, GS Mark
|
Noise Level
|
Operating: Approx. 57 dBA
Idle: < 34 dBA
Power Save: < 30 dBA or Background level
|
Duty Cycle
|
Recommended: 25,000 pages/month
Maximum: 300,000 pages/month
|
In the Box
|
Manuals, Power cable, DVD-ROM, Starter toner cartridge x 4, Image Drum x 4
|
