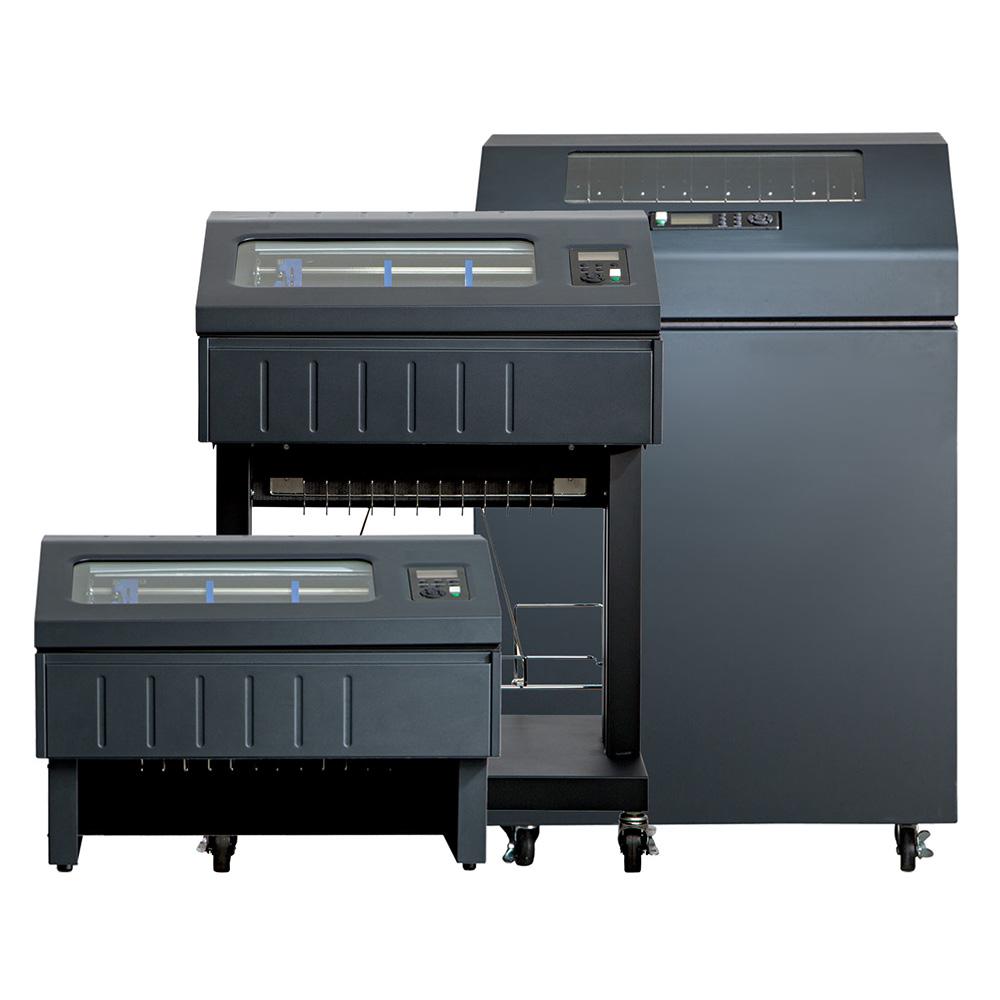

Easy-to-use and ideal for heavy print loads, the MX8050 line printer is available in a choice of pedestal or free-standing cabinet designs. Based on high-impact printing technology with quick print speeds of 500 lines per minute (lpm), the MX8050 is ideal for efficient multi-part forms printing.
Easy-to-use - Trouble-free back-office printing
Combining a user-friendly clamshell design with a large graphic display and integrated print management system, each MX8050 provides complete control and monitoring of ribbon life, maximising device uptime.
- Quick print speeds of up to 500lpm
- Easy-load clean-hands cartridge ribbon
- Uniform print quality throughout the ribbon life
- Standard life 17,000 page ribbon
- Integrated Print Management system automatically monitors and communicates ribbon life, providing precise control over print quality, consumables costs and job planning
Zero-tear pedestal design - Uniquely designed for short print runs and single sheet print jobs
Perfectly suited for high-volume short print runs and single-sheet print jobs, the Zero-Tear pedestal design features an efficient push tractor configuration, enabling first to last line form printing with no loss of information.
- Rear and top paper exit paths
- Push tractor configuration enables easy form tear-off, ideal for forms and cheques
Pedestal designs - Size and weight makes moving and positioning easy
Ideal for industrial applications, the pedestal design delivers efficient results in limited spaces.
- Quick print speeds of up to 500lpm
- Rear and top paper exit paths
- Top paper exit and eject key function ideal for short print runs and easy job retrieval
Cabinet variant - Noise-minimising enclosed cabinet ideal for unattended print runs
Ideal for busy offices, the enclosed cabinet design keeps print noise to a minimum and protects paper feed paths, making it the ideal choice for large unattended print runs.
- All input paper is completely sealed inside and protected from damage
- Highly-effective feed mechanisms allow for neat stacking
Specifications:
|
Printing Technology
|
Line Impact Dot Matrix Method
|
|
Print Head
|
Line
|
|
Dot Wire Diameter
|
0.42 mm
|
|
Graphic Resolution
|
Max. 180(H) x 144(V) dpi
|
|
Print Speed
|
500 lpm
|
|
Paper Route
|
Tractor feeder (Top)
|
|
Character Pitch
|
Near Letter Quality : 10.0 cpi, 12.0 cpi, 13.3 cpi, 15.0 cpi, 16.7 cpi, 17.1 cpi, 20 cpi
Draft : 10.0 cpi, 12.0 cpi, 13.3 cpi, 15.0 cpi, 16.7 cpi, 17.1 cpi, 20.0 cpi
|
|
Printing Width
|
136 characters/line at ANK 10 cpi
|
|
Interface
|
RS-232C (9pin), USB 2.0 (Full Speed), (Optional) 100BASE-TX/10BASE-T, (Optional) IEEE1284-1994 Bi-directional Parallel
|
|
Emulation
|
PRINTRONIX LP+ emulation, P-Series Emulation, P-Series XQ Emulation, Serial Matrix Emulation, IBM ProPrinter emulation, Epson FX Emulation, IPDS Emulation, PRINTRONIX IGP/PGL emulation, PRINTRONIX IGP/VGL emulation
|
|
Supported OS
|
Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, Windows Server 2003, Windows Server 2003 x64, Linux
|
|
Receive Buffer
|
Max. 65536KB
|
|
Resident Font
|
Serif, Sans Serif, Data Processing, High Speed, OCR-A, OCR-B
|
|
Font Style
|
Bold, Italics, Double Width, Enhanced, Underline, Superscript, Subscript
|
|
1-D Barcode
|
Code39, EAN8, EAN13, UPC-A, UPC-E, Intelligent Mail Barcode, POSTNET, RM4SCC, Interleaved 2 of 5 (ITF)
|
|
2-D Barcode
|
PDF417, DataMatrix
|
|
Paper Weight Adjustment
|
Manual
|
|
Paper Size
|
Continuous paper: Width 76.2-431.8mm x Length 50.8-304.8mm
|
|
Paper Weight
|
Continuous paper : 56 - 163 gsm
|
|
Copy Capability
|
Normal print mode: original + 5sheets(Total Thickness < 0.64mm)
|
|
Dimensions(WxDxH)
|
686 x 737 x 1,029 mm
|
|
Weight(includes supplies)
|
52.0 kg - 120.2 kg
|
|
Operating Environment
|
Operating: 10 - 40 °C, 15 - 80 %RH
Storage: -40 - 70 °C, 15 - 90 %RH
No condensation
|
|
Power Source
|
Single phase 100 - 240 VAC ±10%, 50/60 Hz ±2%
|
|
Power Consumption
|
Operating: Max. 320W (ISO10561 (High Speed Draft, Range1) Printing Approx. 280W)
Power Save: < 5.0W
|
|
Noise Level
|
Operating :Approx. 50 dBA
Idle: < 48 dBA
|
|
MTBF(Mean Time Before Failure)
|
10,000 hours
|
|
In the Box
|
Manuals, CD-ROM, Ribbon cartridge, Power cable
|
