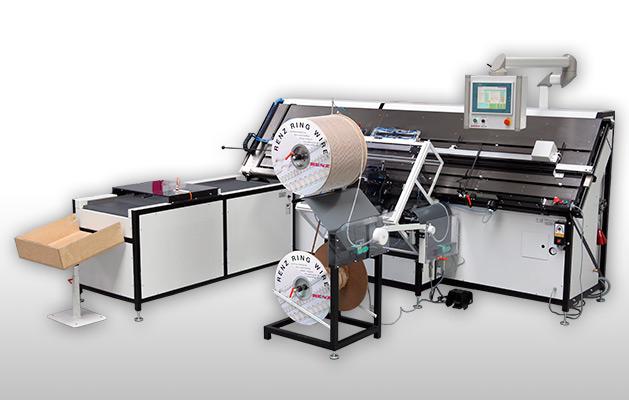

Industrial, high-speed, fully-automatic production RENZ RING WIRE® binding line for books, calendars and skip binding.
- For all types of ring wire, skip binding & calendars
- Simple & fast automatic on-screen machine setup
- Touch screen assisted set-up process
- Easy product loading
- Optional extra:
- Job memory, storage of up to 50 jobs
- KAS calendar hanger systems
- Integrated cover page lifting device
Specifications:
|
Mechanical cycles per hour
|
2,100
|
|
Pitch
|
3:1, 2:1
|
|
Binding thickness
|
15 mm
|
|
Binding element Ø
|
5,5 - 19 mm
3/16“ - 3/4“
|
|
Min. binding width
|
70 mm
|
|
Max. binding width
|
500 mm
|
|
Min. unbound edge
|
135 mm (1)
|
|
Max. unbound edge
|
700 mm (1)
|
|
Binding operation
|
Automatic
|
|
Time required for diameter change
|
20 min
|
|
Format change without diameter
|
3 min
|
|
Calendar hangers
|
Optional
|
|
Machine dimensions L x W x H
|
3,300 x 2,300 x 1,600 mm (3)
|
|
Machine weight
|
1,300 kg (2)
|
|
Machine packing dimensions L x W x H
|
Dependent on the configuration
|
|
Machine weight with packing
|
Dependent on the configuration
|
|
Compressed air
|
7.5 bar / 450 l/min
|
|
Power requirement
|
3/N/PE~400/230V 50Hz / 3.5kW
3/PE~200/115V 60Hz / 3.5kW
|
