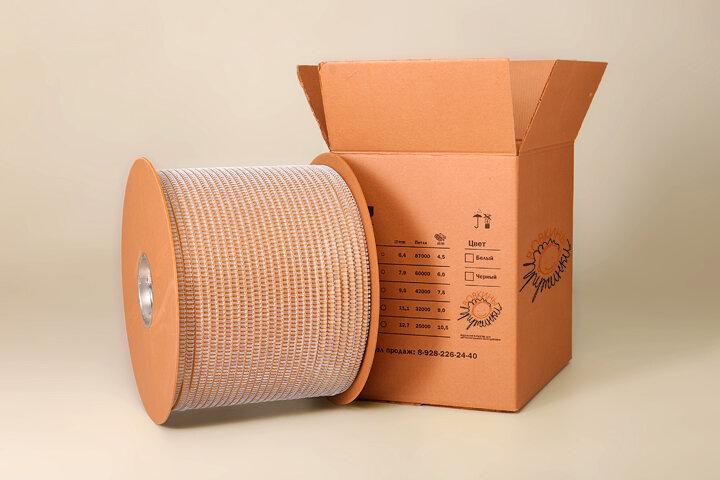

The metal comb binding is used for the production of trio calendars or loose-leaf calendars, notebooks, catalogs or presentations.
The combs differ in diameter and color. Most comb binding machines use a 3: 1 binding.
Metal binding combs are produced in three basic standards:
- 3: 1 - three loops per inch
- 2: 1 — two loops per inch
- 4: 1 — four loops per inch
Pitch 3:1
|
Size
|
Comb diameter
|
Section of the original wire
|
Max. fastened block thickness
|
Recommended maximum number of sheets
(80 gsm, offset)
|
Recommended maximum number of sheets
(90 gsm, coated)
|
|
inch
|
mm
|
mm
|
mm
|
pc
|
pc
|
|
«1/4»
|
1/4
|
6,35
|
0,7
|
4,5
|
30
|
35
|
|
«5/16»
|
5/16
|
7,94
|
0,8
|
6,0
|
50
|
60
|
|
«3/8»
|
3/8
|
9,52
|
0,8
|
7,5
|
60
|
70
|
|
«7/16»
|
7/16
|
11,11
|
0,9
|
9,0
|
80
|
90
|
|
«1/2»
|
1/2
|
12,70
|
0,9
|
10,5
|
100
|
110
|
|
«9/16»
|
9/16
|
14,28
|
1,0
|
12,0
|
120
|
130
|
Pitch 2:1
|
Size
|
Comb diameter
|
Section of the original wire
|
Max. fastened block thickness
|
Number of sheets
(80 gsm, offset)
|
|
inch
|
mm
|
mm
|
mm
|
pc
|
|
5/8
|
5/8
|
16
|
1,2
|
13,5
|
135
|
|
3/4
|
3/4
|
19
|
1,2
|
16
|
160
|
|
7/8
|
7/8
|
22
|
1,2
|
19
|
190
|
|
1
|
1
|
25,4
|
1,2
|
22
|
220
|
|
1 1/8
|
1 1/8
|
28,5
|
1,5
|
25
|
250
|
|
1 1/4
|
1 1/4
|
32
|
1,5
|
28
|
280
|
