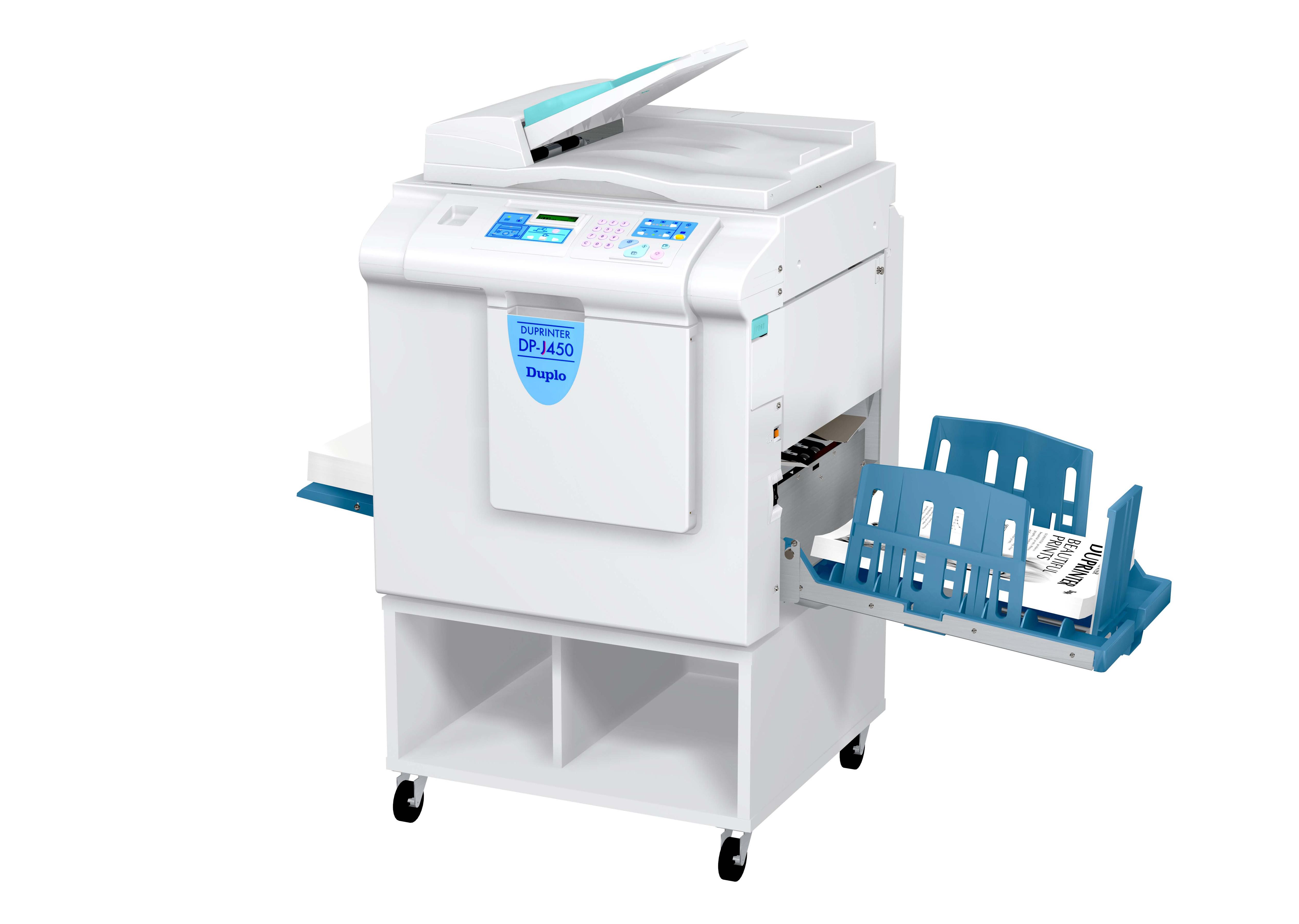

With ability to print on up to A3 paper size, this cost-effective duplicator covers basic functionality and variety of application. Its paper feed capacity and its paper exit capacity are 1,000 sheets and its resolution is 300×600 dpi.
Specifications
|
Type
|
Floor stand model
|
|
Master Making
|
Thermal Digital
|
|
Master Making Speed
|
23 seconds (A4, 100%)
|
|
Resolution
|
Scan 300dpi×600dpi
Print 300dpi×600dpi
|
|
Scanning Method
|
Flat bed scanner
|
|
Printing Method
|
Stencil Print
|
|
Document Type
|
Sheets, Book (max. 10kg)
|
|
Document Size
|
MAX. 297×432mm
|
|
Paper size
|
MAX 297×432mm
MIN 100×148mm
|
|
Image area
|
MAX 290×422mm
|
|
Feeder / Stacker capacity
|
1,000 sheets (80gsm)
|
|
Paper weight
|
53gsm - 210gsm (45kg-180kg)
|
|
Zoom
|
【AB size】100%
Preset reduction/enlargement
70, 81, 86, 115, 122, 141%
Zoom 50～200%
Margin x94%
|
|
Image modes
|
Text, Photo, Text/Photo
|
|
Print speed
|
60 - 120ppm 3 steps
|
|
Registration adjustment
|
Vertical ±15mm
Horizontal ±10mm
|
|
Ink supply method
|
Fully automatic
|
|
Master feeding method
|
Fully automatic
|
|
Color Print
|
By replacing Drum unit
|
|
Other function
|
Master density control, Feed pressure adjustment, Batch printing, Master making size choice, 2-up,4-up,8-up, Book shadow erasure, Memory function, Confidential safeguard, Auto sleep
|
|
Power source
|
【Ratings】
100-240V, 50/60Hz, 1.8-0.8A
【Power consumption】
Maximum Printing speed MAX. 165W
Master making 65W
Standing by 22W
|
|
Dimensions
|
In use 1,351（W）×688（D）×1,080（H）mm
Folded 760（W）×688（D）×1,080（H）mm
|
|
Weight
|
92kg
|
