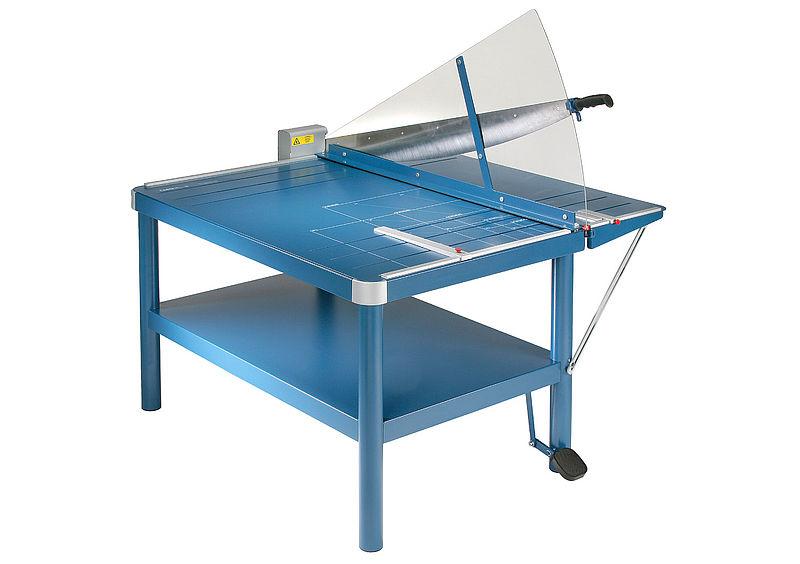

Professional workshop guillotine for cutting up to A1 size
- Ergonomically shaped handle
- Two scale bars with mm scale for an exact 90° cut
- 2 scale bars
- Sturdy, solid-steel blade holder for optimum guidance of the screw-mounted upper blade
- Screw-mounted, ground lower blade for exact results
- Transparent blade guard for cutting safety and unobstructed view of the item being cut
- High-quality, re-sharpenable blades made of Solingen steel for long-lasting cutting quality
- Blades can be sharpened
- Narrow guide channels in the table prevent individual sheets from slipping through
- Clamp can be applied manually or deactivated
- Supporting table included
- Adjustable metal backstop in guide channels for quickly finding the right format – can be used on both scale bars and the front table
- Precision narrow-strip cutting device for cutting extremely thin strips is optionally available (793)
- Precision laser beam line indication available
- Narrow-strip cutting device optional
- High-quality guillotines for commercial use
- Practical format lines on the table facilitate exact alignment of the item being cut
- Material blade suitable for a wide range of different materials - different grind to paper blades. The full cutting height given cannot always be used with some materials deemed suitable for cutting: the full cutting height should definitely not be used when cutting paper. In this instance, we recommend using a guillotine with a paper blade.
- Material blade
- Can be locked to prevent unauthorised use
- Sturdy metal table with rounded corners for firm standing
- Screw-mounted, ground material upper blade and ground lower blade for precision cutting a wide range of materials
- Convenient foot clamping for evenly clamping large-format items
- Folding front table with guide channels
- Precision laser beam line indicator for professional cutting results is optionally available (797)
- Permanently attached stand with storage shelf for an optimum working height of 74 mm
- Lower frame included
Specifications:
|
Cutting length
|
1100 mm
|
|
DIN
|
A1
|
|
Cutting capacity
|
4 mm
|
|
Table size (overall dimensions)
|
1.165 mm x 760 mm
|
|
Weight net
|
84 kg
|
|
Table size (overall dimensions) with supporting table
|
1.165 x 1.135
|
